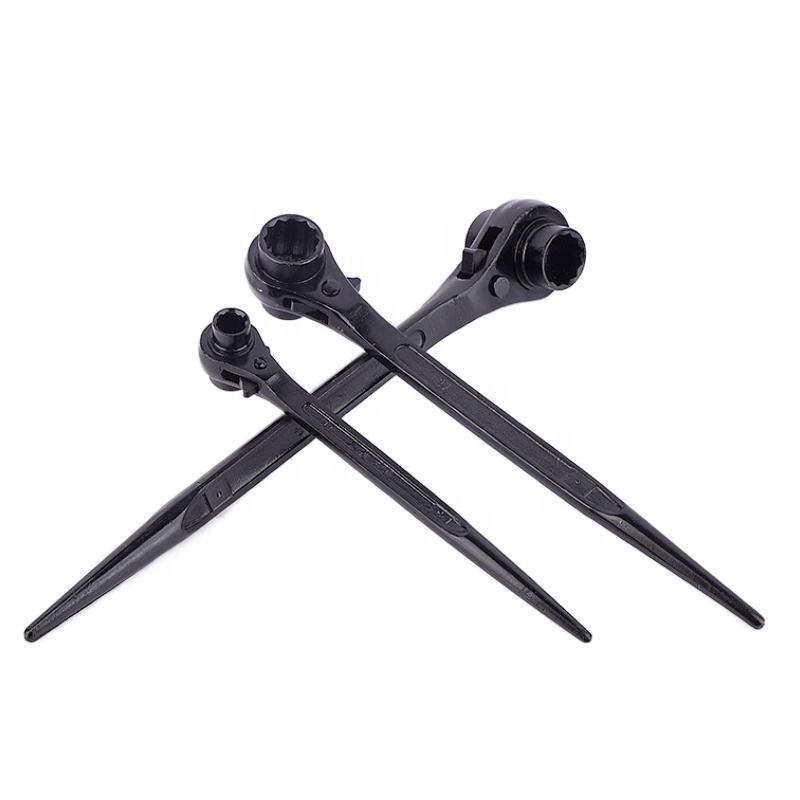

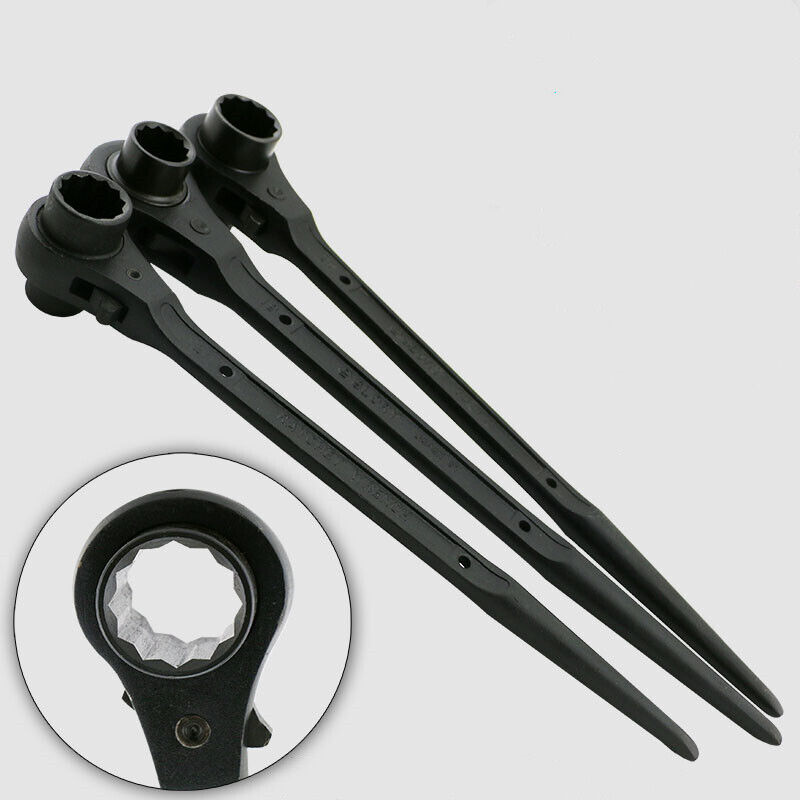

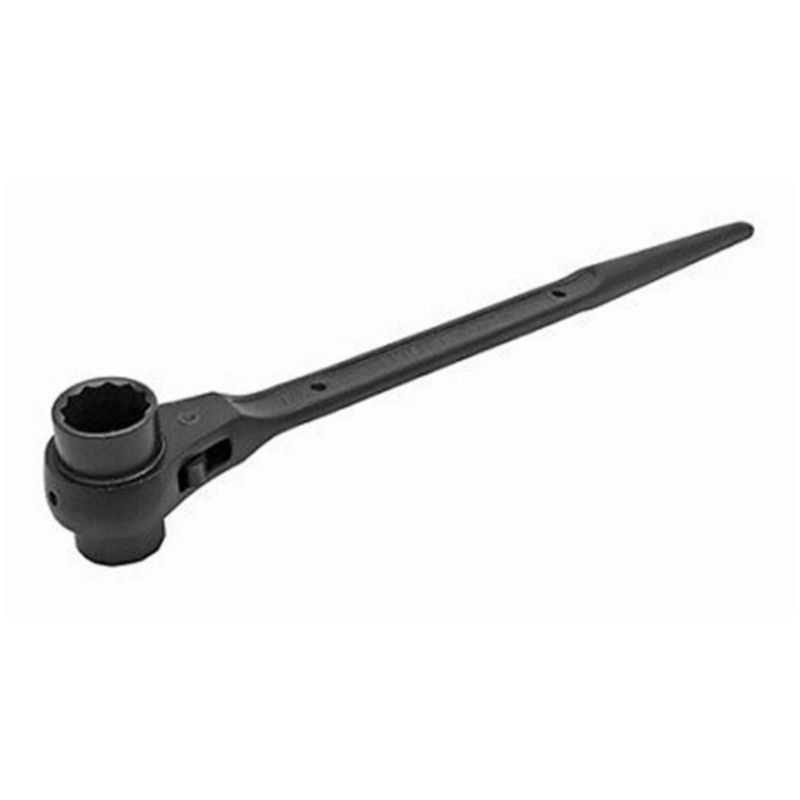

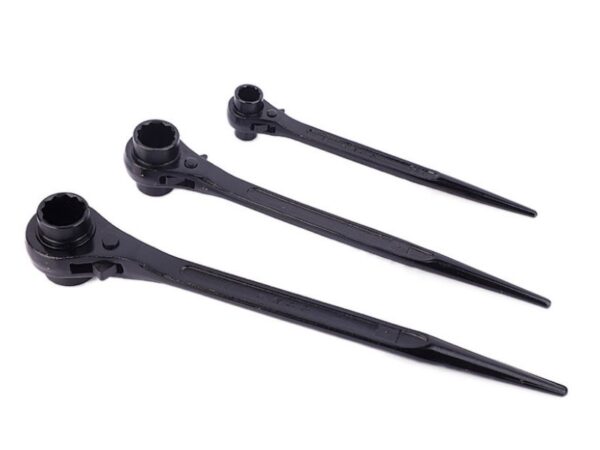

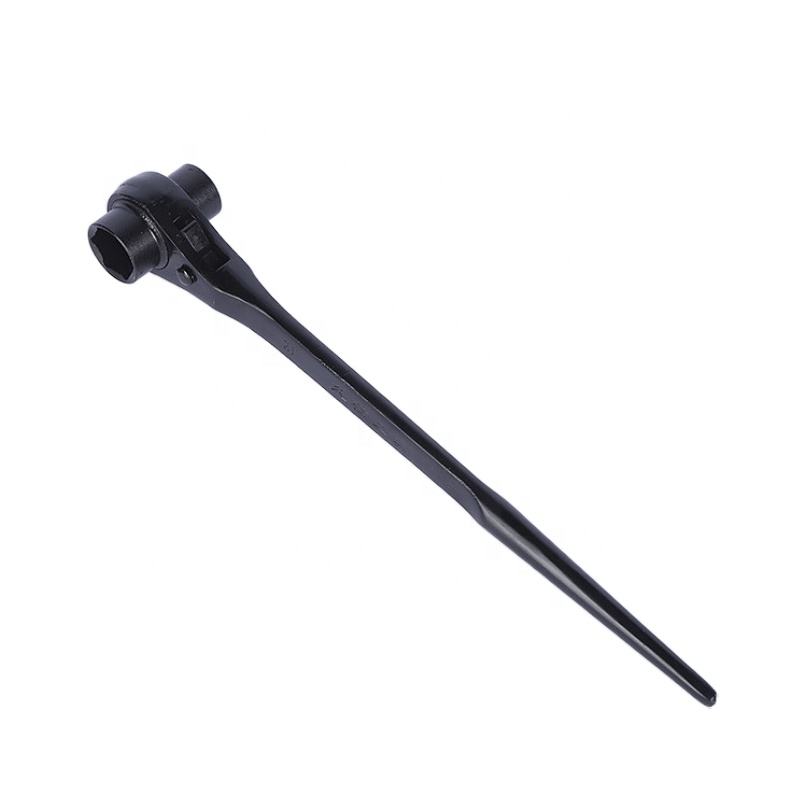

12 Point Double Head Spud Ratchet Wrench
$20.69
- Ratchet spanner, dual socket spud ratchet wrench,scaffold ratchet,scaffold tools.
- Made of chrome vanadium steel, the overall heat treatment.

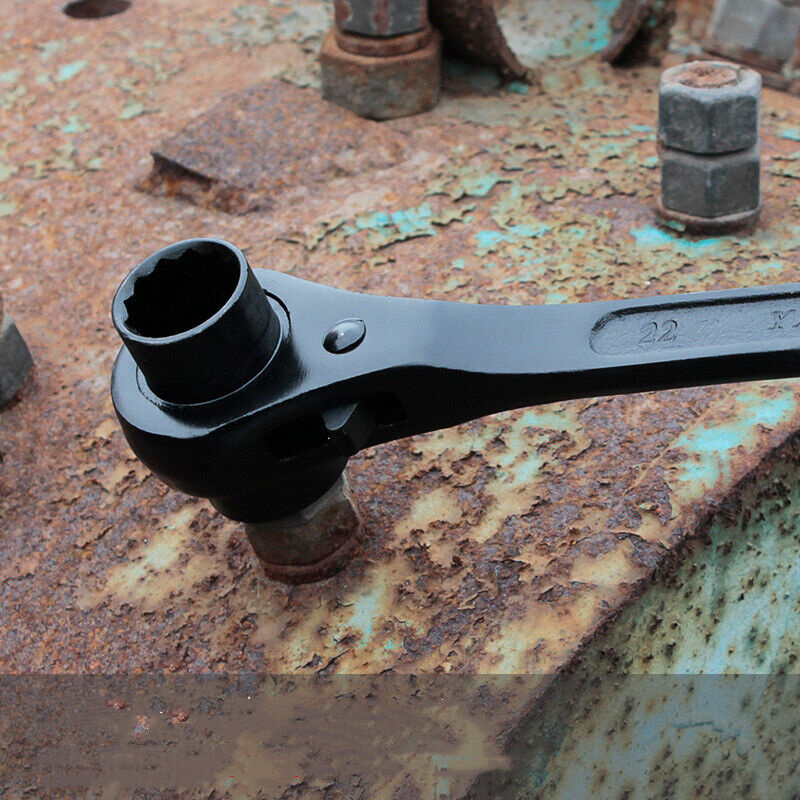

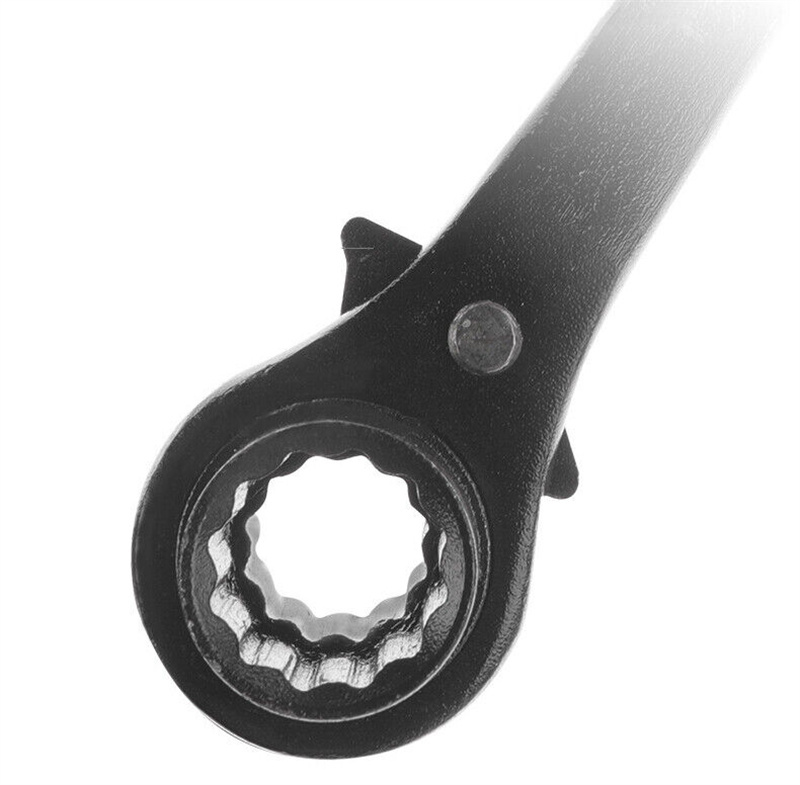

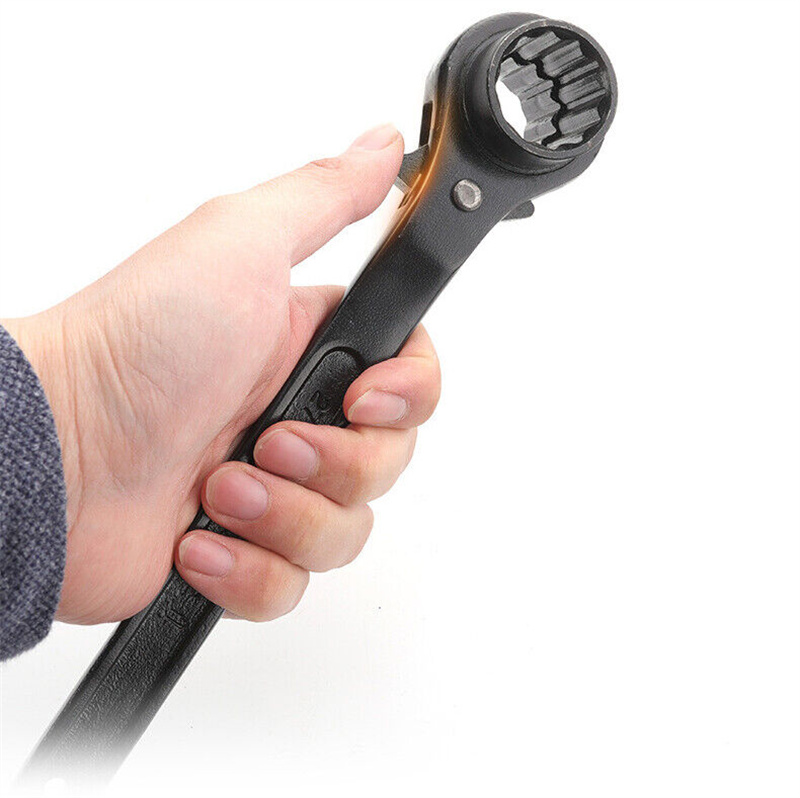

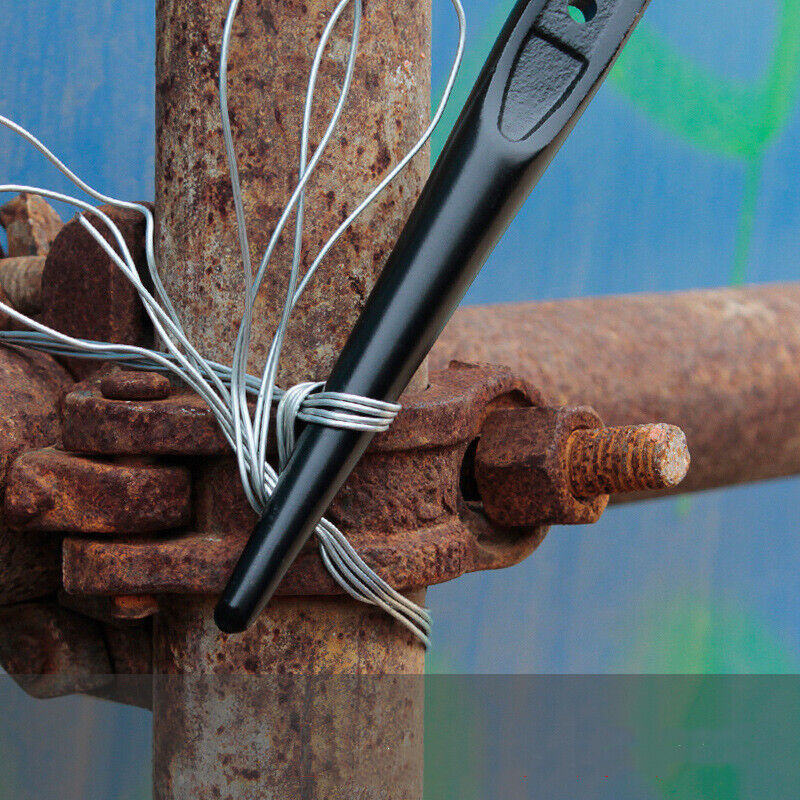

- Ratcheting, metric double openings head and tapered end to line up bolt holes design to make it work with bolts fast and easy

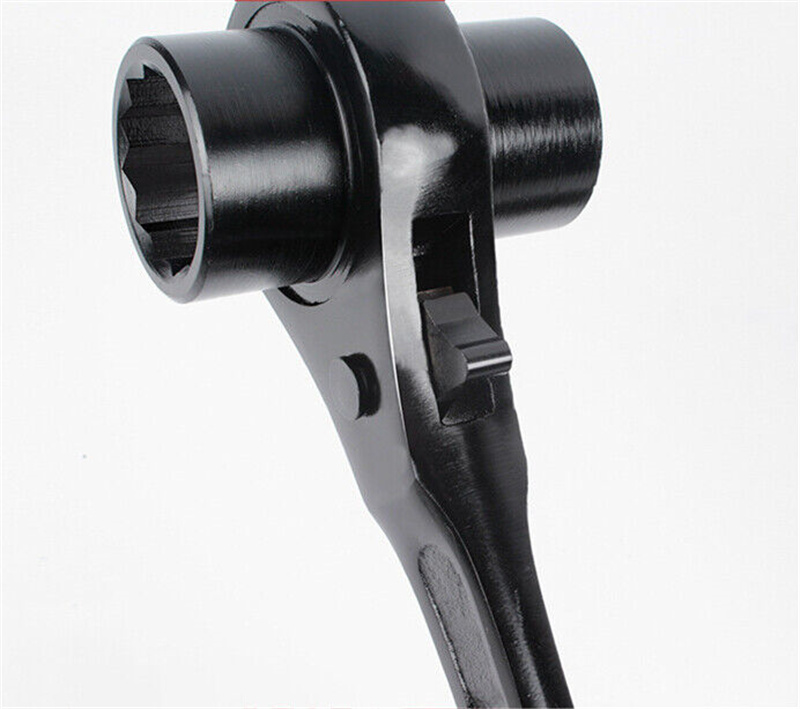

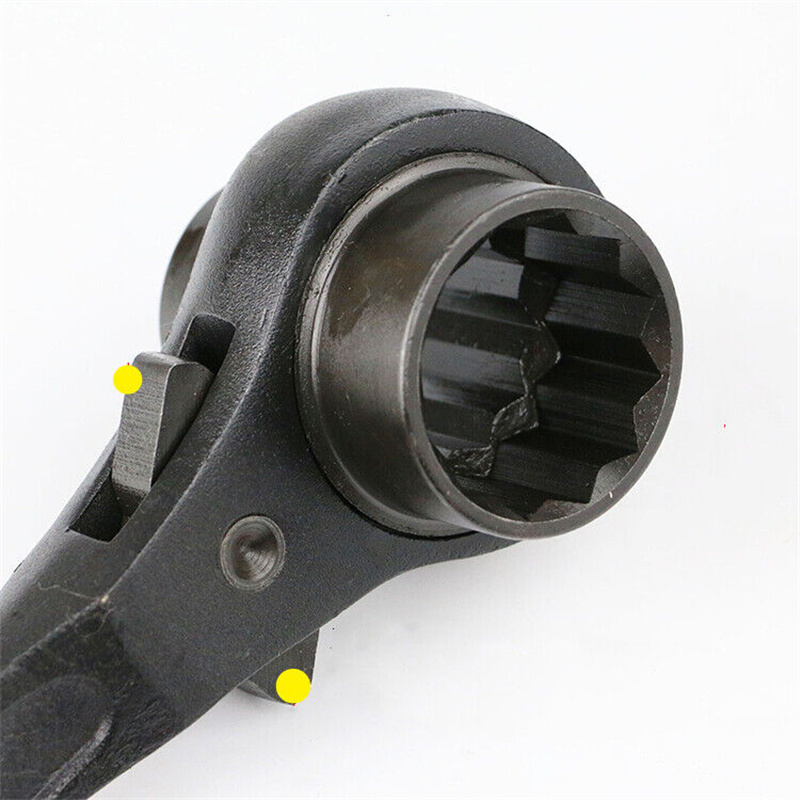

- The reversing design of the paddles and the manual paddle steering function make it easier to use
- Suitable for fitter, mold manufacturing and mechanical maintenance processing industries
|
CODE |
Opening mm |
Overall Length mm |
For Bolt Size |
|
|
Metric |
Whitworth |
|||
|
611051 611052 611053 611054 611055 |
10×12 10×13 10×14 12×14 13×17 |
195 210 210 210 250 |
M6 x – M6 x – M6 x – – – x M 10 |
W3/16xW1/4 W3/16x – W3/16xW5/16 W1/4xW5/16 – |
|
611056 611057 611058 611059 611060 |
14×17 17×19 17×21 19×22 19×24 |
250 290 290 290 330 |
– x M 10 M10xM12 M10x – M12xM14 M12xM14 |
W5/16x – – xW7/16 – xW1/2 W7/16x – W7/16x – |
|
611061 611062 611063 611064 611065 |
21×26 21×27 22×24 22×27 24×27 |
330 330 330 330 330 |
– – xM18 M14xM16 M14xM18 M16xM18 |
-x W5/8 – – – – |
|
611066 611067 611068 611069 |
24×30 26×32 27×30 30×32 |
370 370 370 370 |
M16X M18 – M18X M20 M20 X – |
– W5/8 x W 3/4 – – |

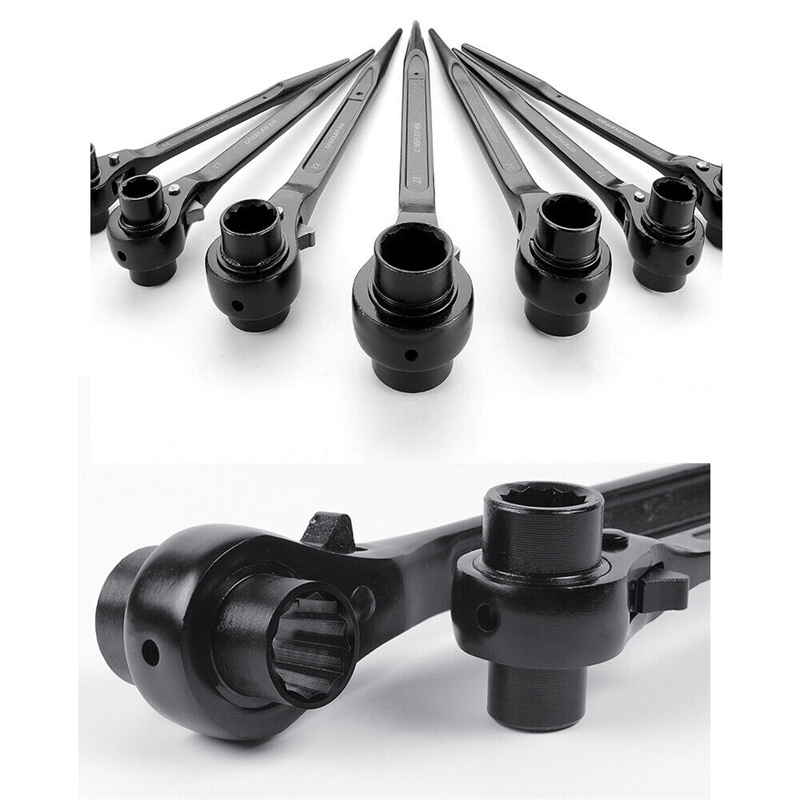

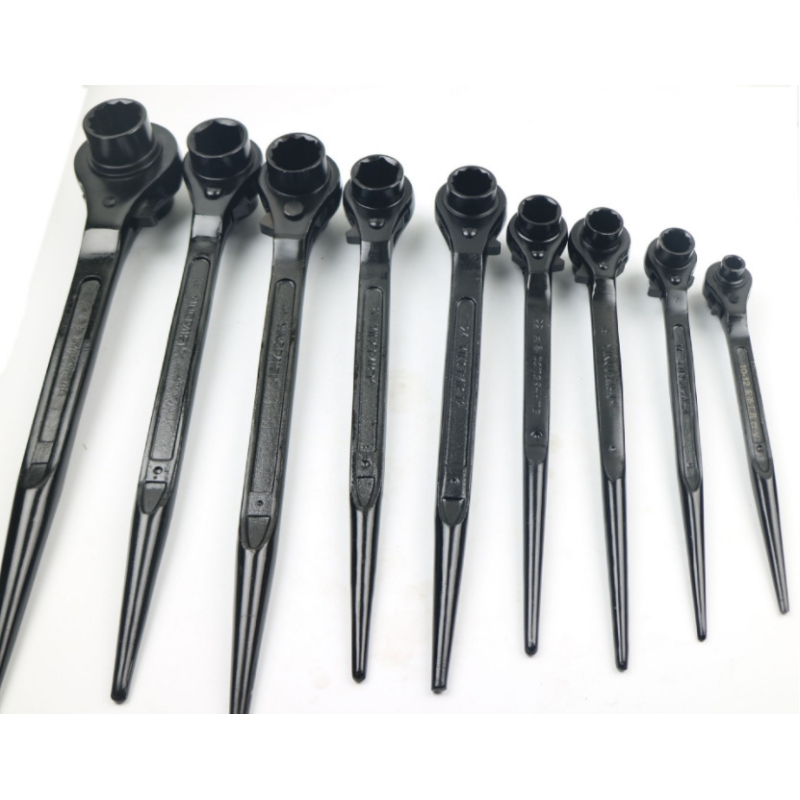

| Size | 10 x 12 MM, 10 x 13 MM, 10 x 14 MM, 12 x 14 MM, 13 x 17 MM, 14 x 17 MM, 17 x 19 MM, 19 x 22 MM, 19 x 24 MM, 21 x 26 MM, 21 x 27 MM, 22 x 24 MM, 22 x 27 MM, 24 x 27 MM, 24 x 30 MM, 26 x 32 MM, 27 x 30 MM, 30 x 32 MM |
|---|
